Centrifuge Microspin-12

Special offer

The Microspin-12 is a compact, high-speed centrifuge for biochemistry laboratories.

The centrifuge's brushless motor ensures both quiet operation at maximum speed and a long service life.

Suitable for operation in cold rooms at ambient temperatures from +4°C to +40°C.

Applications:

Extracting RNA/DNA samples
Sedimentation of biological components
Biochemical and chemical analysis of microsamples

High-Speed Centrifuge Microspin-12

The angle rotor is designed to accommodate twelve Eppendorf microtubes and spin columns. The rotor is made of aluminum, features a locking lid, and is included as standard with the centrifuge.
A constant airflow around the rotor reduces the risk of sample overheating during operation.

Safety features:

Metal protective inserts in the housing and lid
Automatic imbalance shutdown
Closure with lid

The external power supply allows the Microspin-12 to be operated in cold rooms (at room temperatures from +4°C to +40°C).

Included in delivery: MSR-12 rotor for 12 x 1.5/2 ml tubes

Display:

A display simultaneously shows actual and set values for:

Centrifugation time
Set and actual speed values
Relative centrifugal force

Order No.	109.0070
Speed control range	1000 – 14.500 rpm (increment 100 rpm)
Relative centrifugal force control range	50 – 12.400 × g
Max. Capacity	Depending on Adapter: 12 x 0.2 / 0.5/ 1.5 / 2 ml
Digital time setting	15 s – 30 min (increment 15 s – 1 min)
Timer sound signal	Yes
Acceleration time up to 14.500 rpm	20 s
Slowdown time, not more	10 s
Display	LCD, 2 lines
Safety: Rotor imbalance diagnostics: automatic stop, “IMBALANCE” warning	Yes
Overall dimensions (W × D × H)	200 x 240 x 125 mm
Weight	3.5 kg
Input current/power consumption	24 V, 2.5 A / 60 W
External power supply	Input AC 100 -240 V 50/60 Hz, Output DC 24 V

Standard set (included in delivery)

Built-in rotor MSR-12 (12 places for microtubes 1.5/2 ml) with protection lid MSL-SC and adapters A-02, A-05

Accessories (option)

Adapter	Description

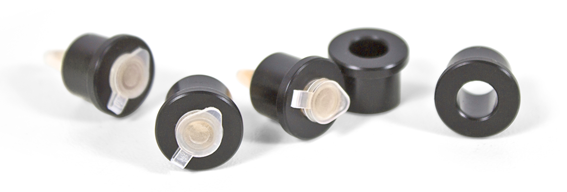

A-02	12 pieces for 0.2 ml microtubes

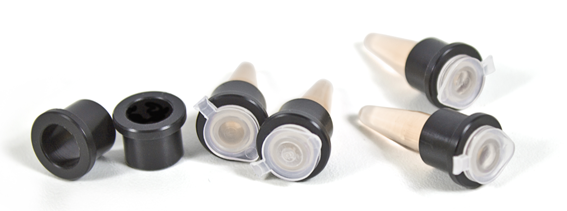

A-05	12 pieces for 0.5 ml microtubes
MSL-SC	Spin Column Protector Higher rotor lid to accommodate spin columns
