Thermoshaker TS-100C Pro
TS-100C Pro – Precise temperature control and efficient mixing.
The TS-100C Pro combines precise heating and cooling with powerful shaking in a compact laboratory instrument. Thanks to interchangeable thermoblocks and intuitive touchscreen operation, the thermoshaker can be flexibly used for a wide variety of sample preparation applications.
With temperatures ranging from +4°C to +100°C, shaking speeds up to 2,500 rpm, and freely programmable, multi-stage processes, the TS-100C Pro enables reproducible and efficient workflows – ideal for applications such as DNA/RNA extraction, cell lysis, protein extraction, and enzymatic reactions.
Request a quoteThermo-Shaker TS-100C Pro
It was developed to ensure reproducible workflows in sample preparation and allows multi-step programs to be created and saved directly on the touchscreen. This reduces repetitive manual parameter adjustments and the need to transfer samples between separate heating, cooling, and mixing devices.

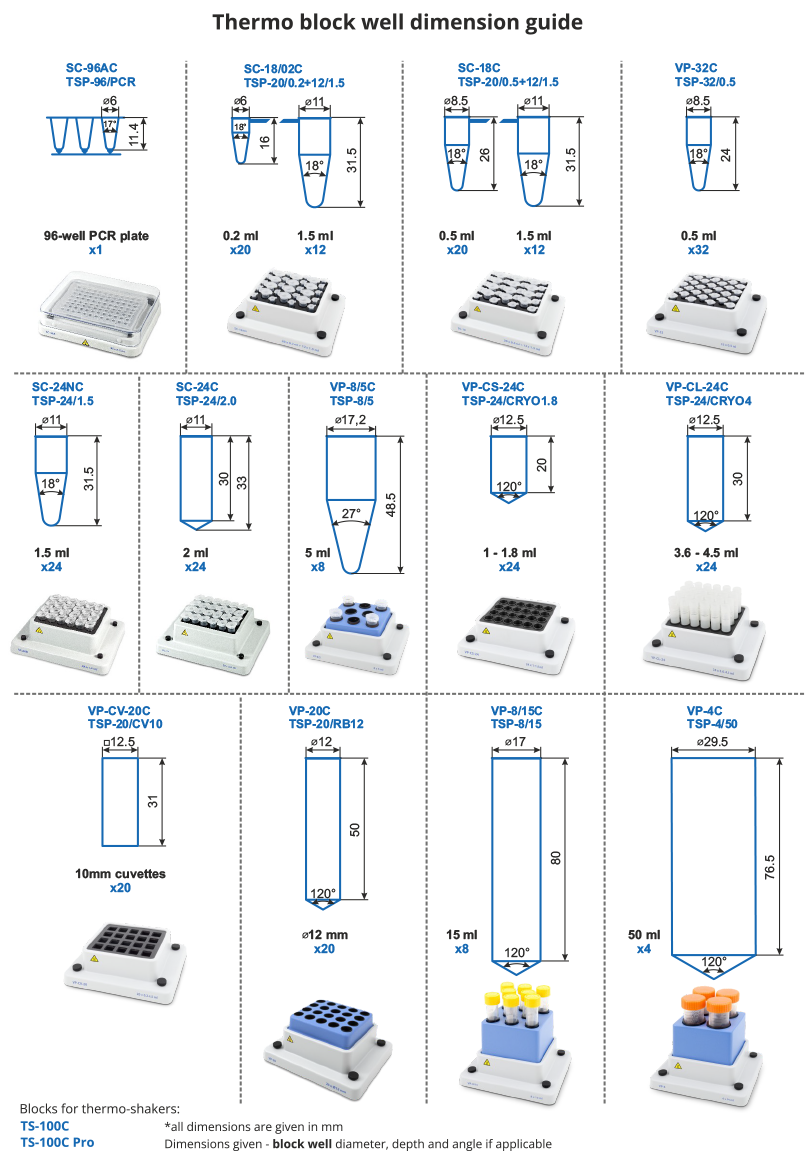

A range of interchangeable thermal blocks allows the device to be configured for various tube, strip, and plate formats.
Specifications
- Heating, cooling and mixing in one instrument for efficient temperature-controlled sample preparation.
Mixing speeds up to 2500 rpm support intensive mixing, bead resuspension, extraction and lysis workflows. - Automatic thermoblock recognition identifies the installed block and limits the maximum mixing speed accordingly.
- Quick thermoblock exchange without external tools or separate cable connections reduces setup time between applications.
- Advanced on-screen programming with up to 20 saved programs and up to 20 steps per program, including holds, repetitions and parameter transitions.
- Clear touchscreen interface displays set and actual temperature, speed, time and program status at a glance.
- Quick Mix function starts a short mixing cycle using the selected parameters without creating a complete program.
- Optional heated lid helps minimise condensation during temperature-controlled workflows. The instrument recognises the lid automatically, while lid heating can be switched on or off as required.
- Five configurable user profiles and screen lock help protect established methods and prevent unintended changes in shared laboratories.
- Integrated system and maintenance information provides access to the serial number, firmware version, operating hours, calibration status, service reminders and diagnostics. The operating manual can be accessed using an on-screen QR code.
Applications
- DNA and RNA extraction
- NGS library preparation
- Magnetic-bead cleanup and resuspension
- Cell lysis
- Protein extraction
- Enzymatic reactions
- Incubation
- Hybridisation
- Analytical sample preparation
| Temperatue setting range | +4°C to +100°C |
| Temperature control range | 15°C below ambient temperature up to +100°C |
| Temperature setting resolution | 0.1°C |
| Temperature stability | ±0.1°C |
| Temperature accuracy at +37°C | ±0.5°C |
| Average heating speed from +25°C to +100°C | 8°C/min |
| Average cooling speed from +100°C to +25°C | 5°C/min |
| Average cooling speed from +25°C to +4°C | 1.8°C/min |
| Temperature uniformity over the block | at +4°C ±0.6°C at +37°C ±0.1°C at +100°C ±0.3°C |
| Temperature calibration coefficient range | 0.936...1,063 (± 0.063) |
| Speed control range | 250 – 2500 U/min |
| Orbit | 2 mm |
| Display | 3.5” TFT, 320 x 480 px |
| Digital time setting | 1 min – 96 h / non-stop (increment 1 min) |
| Timer sound signal | Yes |
| Microprocessor control for temperature, mixing speed and operating time | Yes |
| Maximum operating time without interruption | max. 168 hrs |
| PC connection | USB-C |
| Overall dimensions (W × D × H) | 220 x 250 x 115 mm (without block) |
| Weight | 5.1 kg |
| Input current/power consumption | 12 V DC, 11.5 A / 138 W |
| External power supply | Input AC 100–240 V; 50–60 Hz; Output DC 12 V |
