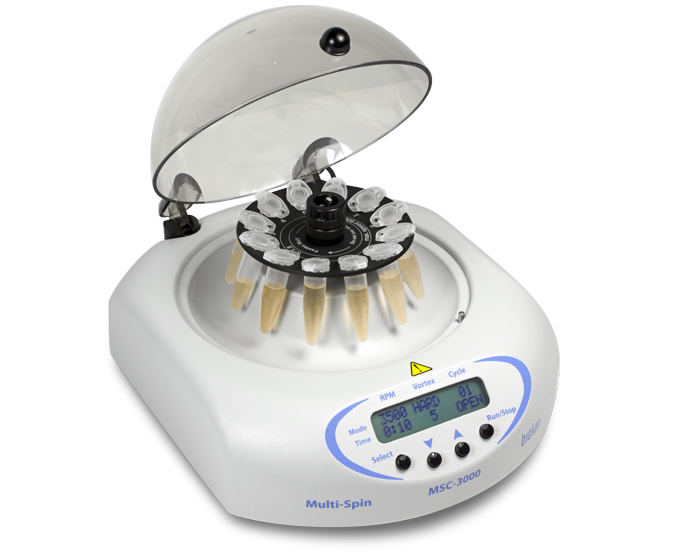

Centrifuge + Vortex - Multispin MSC-3000

Multi-Spin Centrifuge is specially designed for PCR and DNA analysis.

The Spin-Mix-Spin-Technology (SMS) has been further developed over many years and is suitable for the following applications:

Collecting micro volumes of reagents on the microtube's bottom (first centrifugation spin)
Following mixing (mix)
Collecting the reagents again from the walls and cap of the microtube (second spin).

This repetitive algorithm of operation that is aimed at reducing the mistakes during sample preparation for PCR analysis is named “SMS–Algorithm”.

Request a quote

Centrifuge/Vortex - Multi-Spin

Multi-Spin is a fully automatic device for reproducing sms–algorithm for 12 tubes at one time, thus saving time considerably. A must-have instrument for PCR and DNA analyses laboratory.

We named this repetitive algorithm of operation that is aimed at reducing the mistakes during sample preparation for PCR analysis a “sms–algorithm”.

Multi Spin is four devices combined in one

Centrifuge - Maximum RCF: up to 800 × g
Vortex (3 mixing modes - soft, medium, hard; regulated time; Vortexing regulation timer 1–20 sec)
Centrifuge/Vortex;
SMS–cycler for realization of the “SMS-algorithm”.

Saving time with Multi-Spin
Multi-Spin allows considerable time saving compared to Combi-Spin by automatically performing cycling program of sample mixing and spinning according to the set spin-mix-spin cycle for 12 microtubes simultaneously (see table below).

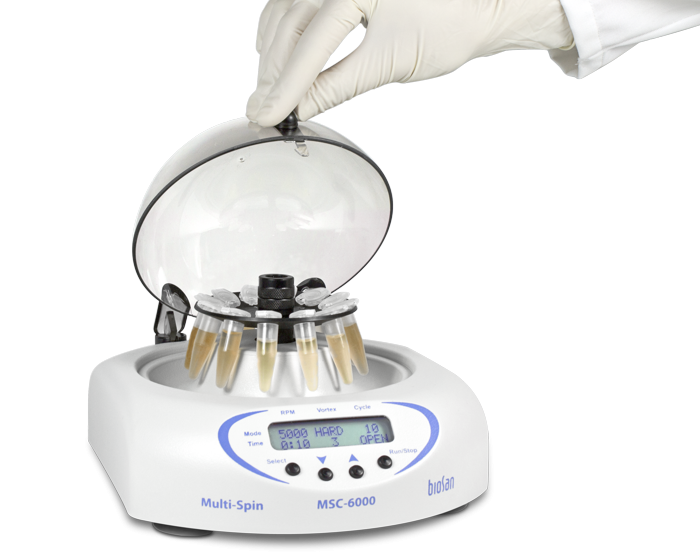

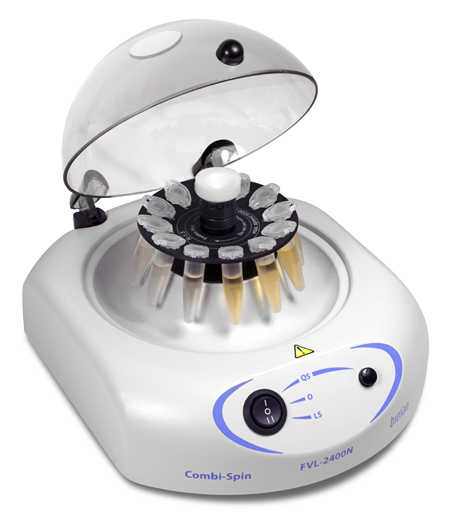

Model	FVL-2400N Combi-Spin	MSC-3000 Multi-Spin	MSC-6000 Multi-Spin
Order No.	109.3040	109.3005	109.3010


Speed control max.	2.800 rpm	3.500 rpm	6.000 rpm
RCF max.	700 x g	800 x g	2.350 x g
Number of tubes vortexing	1 individually	12 simultaneously
Time for completing spin-mix-spin cycle
for 2 microtubes	60 sec	25 sec	15 sec
for 12 microtubes	5 - 6 min	90 sec	60 sec
for 100 microtubes	60 min	15 min	10 min

Order No.	109.3005
Speed control range	1.000 – 3.500 rpm (increment 100 rpm)
RCF max.	800 x g
Capacity max.	Depending on Rotor: 12 x 0.2 / 0.5 ml 12 x 1.5 ml 8 x 0.5 / 2.0 ml 6 x 0.2 / 0.5 / 2.0 ml 0.2 ml Strip Tubes
Spin timer	1 s – 99 min
Vortexing intensity	Soft, medium, hard
Vortexing time	0 – 20 s (increment 1 s)
SMS-cycle regulation	1 - 999 cycles
Display	LCD, 2 x 16 signs
Safety	Autostop at open lid
Overall dimensions (W×D×H)	190 x 235 x 125 mm
Weight	2.1 kg
Input current/power consumption	12 V, 11 W (0.9 A )
External power supply	Input AC 100-240 V; 50/60 Hz; Output DC 12 V
2 standard rotors inclusive	R-1.5 and R-0.5/0.2, optional rotors see table accessories

Available Accessories

	R-1.5 Rotor for 12 x 1.5 / 2 ml microtubes	Standard rotor (Included in delivery)
	R-0.5 / 0.2 Rotor for 12 x 1.5 ml + 12 x 0.2 ml microtubes	Standard rotor (Included in delivery)
	R-2 / 0.5 Rotor for 8 x 2/1.5 ml + 8 x 0.5 ml microtubes	Option
	R-2 / 0.5 / 0.2 Rotor for 8 x 2.0 ml + 8 x 0.5 ml microtubes	Option
	SR-16 Rotor for 2 x 0.2ml strip-tubes	Option
	SR-32* Rotor for 4 x 0.2 ml strip-tubes *not compatible with Multi-Spin models produced before 2015	Option

Is unit supplied with rotors?
Unit is supplied with two rotors R-1.5 (12x1.5 ml microtubes) and R-0.5/0.2 (12x0.5 ml and 12x0.2 ml microtubes). Other rotors can be ordered separately.

Data Sheet Centrifuge Multi-Spin MSC
