Peptide Shaker SPPS

Peptide Shaker LP360-AMP Series

Specifications

• Variable motion modes tilt angles of 15°, 30°, 45°, 60°, 90°, 120°, or 180°
• Additional full 360° rotation: allows mixing to be tailored to the resin type, vessel size, and reaction step.
• Wide speed range
• 9 speed settings ranging from approximately 4–120 rpm (depending on the set angle).
• Double-sided design: accommodates one or two laboratory holders simultaneously.
• Two clamps are included as standard. Optional adapters allow for the mounting of additional holders and up to four reaction vessels.
• Programmable timer
• Run times up to 24 hours
• Suitable for long coupling or washing steps
• Automatic return to starting position: Upon completion of the program, the unit returns to the "0" position, facilitating the removal of reaction vessels.

Peptide shaker with integrated vacuum pump

The LP360AMPv model is of particular interest for SPPS applications because it combines shaking and vacuum filtration in a single compact unit, thereby reducing the manual effort involved in washing and deprotection steps. This model features integrated vacuum control located directly above the shaker. The unit can control external water-jet or diaphragm pumps or be supplied with an integrated diaphragm pump, allowing filtration and aspiration steps to be conveniently integrated into the SPPS workflow.

Additional specifications for the LP360AMPv

• Integrated diaphragm pump available as an option
• Flow rate approx. 250 ml/min
• Suitable for high-boiling solvents such as DMF
• Connection ports for external vacuum pumps provided.

Option

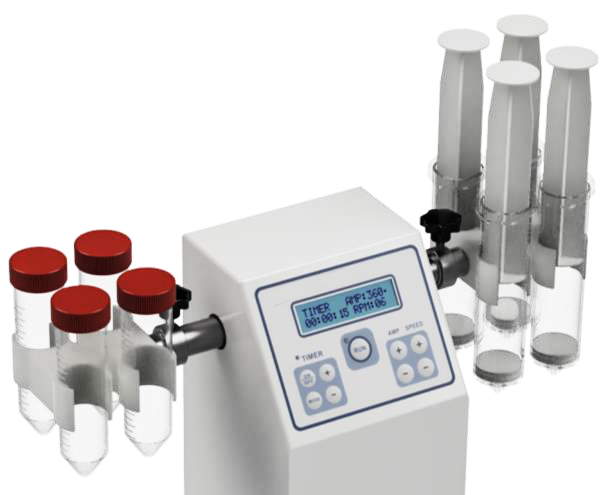

Easy-to-attach and detach holders for syringes and Falcon tubes:
- Holders for syringes from 3–24 ml
- Holder for Eppendorf® and Falcon tubes
