Water Bath MKWB Series

Sturdy water baths in various sizes made of polypropylene.
They offer very good thermal insulation and are space-saving.

The smooth surfaces and rounded inner edges make them excellent for sterile cleaning.
Even at high temperatures, there is no risk of burning on the outer walls.

Resistant to many acids.

Request a quote

Polypropylene Water Baths

In addition to setting the temperature in degrees Celsius or Fahrenheit, it is possible to set three programmable fixed times up to 99.59 minutes and a lower and upper setpoint limit via a digital LED display.

Behind this is a microprocessor-controlled PID temperature control, which guarantees a temperature constancy of +/- 0.2 K and is equipped with a visual and/or acoustic limit value alarm (acoustic alarm can be switched off).

The dry-heat protection integrated in the heater and the production of our water baths according to DIN 12876 (safety class 1) guarantee the possibility of unsupervised operation (if used properly with non-flammable liquids).

Furthermore, the bath vessel can be easily emptied via the screw plug of the bottom outlet or an optional drain tap.

Specifications

Microprocessor-controlled PID controller
Three programmable fixed temperatures
Adjustable lower and upper setpoint limits
Adjustable key lock
Limit value alarm visual and/or audible, alarm circuit can be switched off
Temperature setting in Celsius or Fahrenheit
Dry-heat protection integrated in the radiator
Protection class 1 - unsupervised operation with non-flammable liquids is possible

Model	MKWB 5	MKWB 12	MKWB 25	MKWB 55	MKWB 150

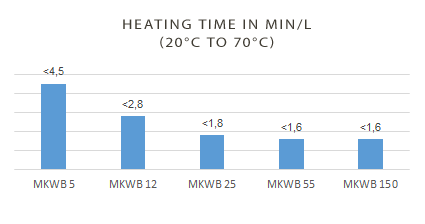

Heating time (20 to 70°C)	< 4.5 min/l	< 2.8 min/l	< 1.8 min/l	< 1.6 min/l	< 1.6 min/l
Heating emission	< 65 W/h	< 80 W/h	< 100 W/h	< 115 W/h	< 115 W/h
Bath volume	2 – 6 l	4 – 12 l	6 – 25 l	10 – 55 l	15 – 150 l
Opening	215 x 230 mm	390 x 230 mm	450 x 230 mm	680 x 350 mm	900 x 560 mm
Bath depth	120 mm	120 mm	170 mm	190 mm	300 mm
Temperature range	25 – 90°C	25 – 90°C	25 – 90°C	25 – 90°C	25 – 90°C
Temperature uniformity (at 70°C in water)	± 0,2 K	± 0,2 K	± 0,2 K	± 0,2 K	± 0,2 K
Ambient temperature	1 – 40°C	1 – 40°C	1 – 40°C	1 – 40°C	1 – 40°C
Heating capacity	1.0 kW	1.6 kW	2.0 kW	2.0 kW	2.6 kW
Dimensions (W x D x H)	370 x 255 x 180 mm	540 x 255 x 180 mm	600 x 255 x 290 mm	840 x 380 x 250 mm	1100 x 600 x 300 mm
