Safety Cabinet Mars Pro
Microbiological safety cabinet class 2 according to DIN/EN 12469.
Caution! Safety cabinet especially for antivirals and cytostatics!
Mars Class 2 is the safety cabinet of choice when working with viral work and cytostatics.
The Mars safety cabinet uses the latest in laminator technology, energy-saving designs and HEPA-filtration. Low energy consumption result in less heat transmission to the work chamber and to the laboratory contributing significantly to a reduction of overall energy costs.
The ergonomically arranged, angled front window and the glare-free lighting allow a comfortable and relaxed working posture - both sitting and standing.
The integrated control panel with LCD display is conveniently positioned for ease of viewing and operation, ensuring optimal performance and safety characteristics at all times.
Thanks to its low-noise design, the Mars Pro model safety cabinet is one of the quietest safety cabinets available.
Made in Europe.
Request a quoteSafety Cabinet Class II - Mars Pro
Safety Features Mars Pro Series
- 110 mm HEPA filters with efficiency at 99,999% against 0,3 μm particles, ensuring a clean sterile work chamber environment.
- Unique laminator/diffuser technology giving turbulent-free air flow, protecting your samples against particle contamination.
- Down flow & exhaust fans are constantly monitored via the flow sensors to ensure safe operating conditions are maintained.
- Alarms, both acoustic and visual for unsafe airflow conditions or any interruption.
- Angled pre-filter for easy inspection and filter exchange.
- Sectional 300 mm work tops allowing loads up to 50 kg per 300 mm, easy removal for cleaning and decontamination of all surfaces.
- Easy to maintain as all service functions are performed from the front of the cabinet, including changing of the HEPA filters, pcb’s and sensors, and adjustments/monitoring of alarms and fan speed.
Benefits
- Low operating temperature and heat generation
- Low noise level
- Energy efficiency
- Ergonomic design
- Excellent light distribution
- Electrically adjustable windscreen
- Integrated control panel with LCD display
- Panorama front and side windows
- Easy window cleaning from both sides
Principle of Operation Mars Pro
The air flow enters the biological safety cabinet work chamber via the front aperture and continues under the worktop, and up the rear plenum where 70% is recirculated through the two main HEPA filters, providing the down flow and 30 % exits out through the HEPA filter to exhaust.
The vertical laminar flow recirculation provides
- Operator Protection by means of inflow,
- Product Protection by means of down flow
- Environmental Protection by means of the filtered exhaust.
The triple HEPA filter system ensures the elimination of any possible cross contamination. The air in the work chamber has to pass through two sets of main HEPA filters.
This makes the Mars Pro the ideal choice of cabinet for working with hazardous materials such as cytostatic, virus manipulation and category 3 pathogens.
| Model | MarsPro 900 | MarsPro 1200 | MarsPro 1500 | MarsPro 1800 |
|---|---|---|---|---|

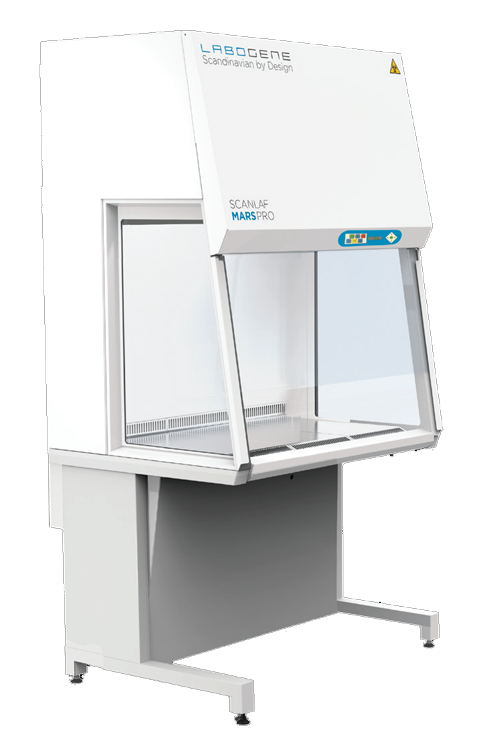

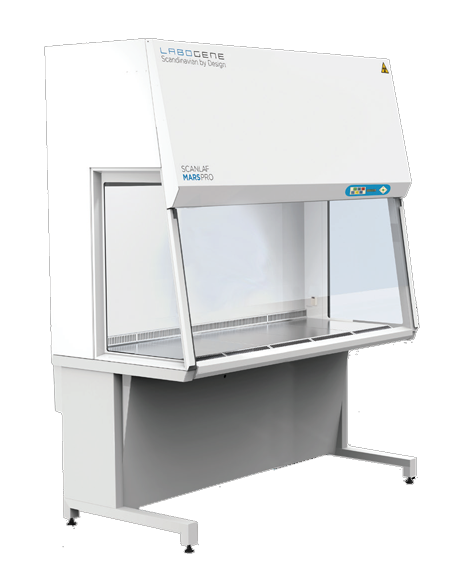

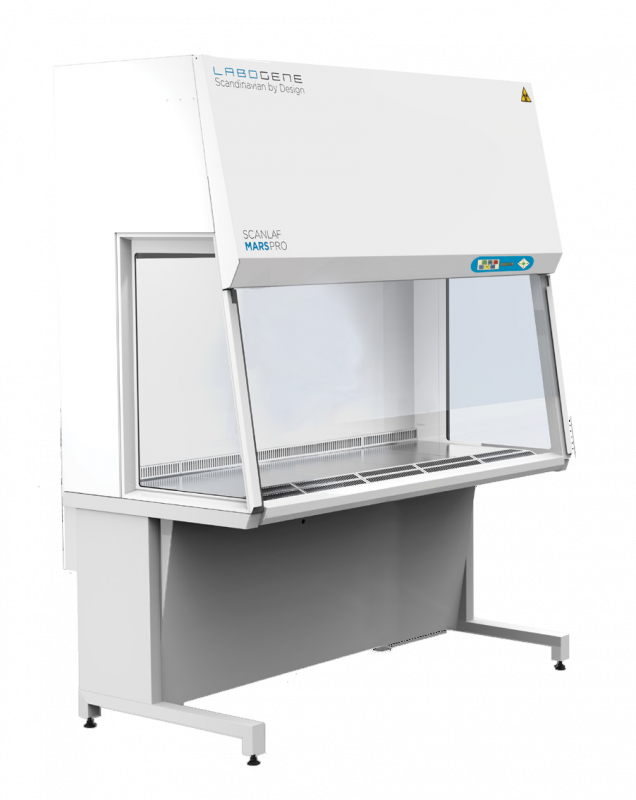

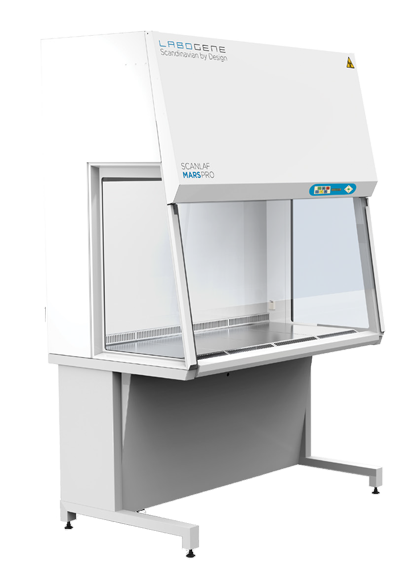

| Figure |  |  |  |  |
| Dimensions Exterior (D x W x H) with height-adjustable base (Standard) | 1004 x 797 x 2033 mm | 1304 x 797 x 2033 mm | 1609 x 797 x 2033 mm | 1914 x 797 x 2033 mm |
| Dimensions Working chamber (D x W x H ) | 900 x 650 x 700 mm | 1200 x 650 x 700 mm | 1500 x 650 x 700 mm | 1800 x 650 x 700 mm |
| Front opening (height) | 200 mm | |||
| Number of worktop segments | 3 | 4 | 5 | 6 |
| Height worktop with adjustable base | 750 (745 – 780) mm | |||
| Sound pressure level / factory setting | ≤ 47 dB (A) | ≤ 49 dB (A) | ≤ 51 dB (A) | ≤ 53 dB (A) |
| Sound pressure level in Eco-Save mode | ≤ 37 dB (A) | ≤ 38 dB (A) | ≤ 38 dB (A) | ≤ 40 dB (A) |
| Exhaust air, air velocity | 0,28 ±0,01 m/s | |||
| Inflow, air velocity | 0,45 m/s | |||
| Exhaust velocity | 292 m3/h | 389 m3/h | 486 m3/h | 583 m3/h |
| Light intensity (dimmable) | > 1000 Lux | > 2000 Lux | > 2000 Lux | > 2000 Lux |
| Filter construction compliant with EN 1822-1 | 3-Filter-System, HEPA, mind. Klasse U17 | |||
| Material worktop and tray | Stainless Steel AISI 304 (Optional Stainless Steel AISI 316) | |||
| Max. total load on worktop | 100 kg | |||
| Material side panels | Tempered safety glass, 5 mm, opening 3 x 22 mm | |||
| Material front screen | Laminated safety glass, 6 mm (anti-reflective coating optional) | |||
| Material / color workbench and rear panel | Polyester-coated steel / RAL 9016 | |||
| Power supply | 220 – 240 V / 50/60 Hz | |||
| Socket type, double socket right and left | 2-way (in total 4 sockets) | |||
| Max. current (fuse) | 10 A | |||
| Sockets: max. total current (fuse) | 6,3 A | |||
| Transport volume | ca. 2.2 m3 | ca. 3.0 m3 | ca. 3.2 m3 | ca. 4.1 m3 |
| Net weight | 296 kg | 308 kg | 320 kg | 332 kg |
