Small Peptide Shaker LP180TW
The LP180TW and LP180TWv are compact twin-peptide shakers designed specifically for applications such as solid-phase peptide synthesis (SPPS) and the agitation of small reaction vessels.
Key feature is the presence of two independently driven shaker arms that can be controlled separately.
Applications
- Manual or semi-automated SPPS
- Shaking of reaction syringes
- Resin washing and swelling steps
- Mixing of small reaction batches
- Parallel processing of two independent syntheses or reaction vessels.
Peptide Shaker LP180TW
Specifications
- Two independent shaking arms: Each arm is controlled by its own rotary knob. This allows two samples or reaction vessels to be moved simultaneously yet independently of each other.
- Variable shaking motion:
The swivel angle can be set to 15°, 30°, 45°, 60°, 90°, 120°, or 180°. - 360° rotation is also possible. Settings are adjusted via a switch on the rear of the unit.
This allows the mixing action to be adapted to the resin type, vessel size, or reaction step. - Adjustable speed: The shaking speed is continuously variable.
- Suitable for small vessels: The device is designed for syringes, Falcon tubes, and other small laboratory vessels; compatible holders are available.

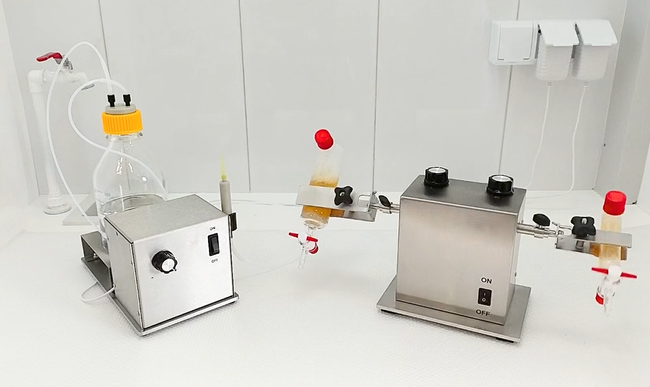

Model LP180TWv with Vakuum Version
The LP180TWv shaker is designed for workflows involving filtration or aspiration steps.
The model can automatically control a vacuum pump. Depending on the version, an integrated PTFE-coated vacuum pump with a flow rate of approximately 250 ml/min is also available.
Caution: Not suitable for low-boiling solvents, as cavitation may occur.
| Model | LP180TW | LP180TWv |
|---|---|---|
| Shaking type |
|
|
| Speed | Adjustable | Adjustable |
| Control | Rotary knobs | Rotary knobs |
| Pump control | - | Automatic control Option: Integrated PTFE-coated diaphragm pump Flow rate approx. 250 ml/min |
| Max. load | 2 x 100 g | 2 x 100 g |
| Voltage | 100 -240 V AC (24 V DC) | 100 -240 V AC (24 V DC) |
| Material | Stainless steel | Stainless steel |
| Weight | approx. 3 kg | approx. 3.2 kg |
| Dimensions (H x W x D) | 170 x 210 130 mm | 170 x 210 130 mm |
